Open Frame Power Supply
2" x 4", 3" x 5" standard form factors are available for selection. Modified standard and custom designs are welcome.

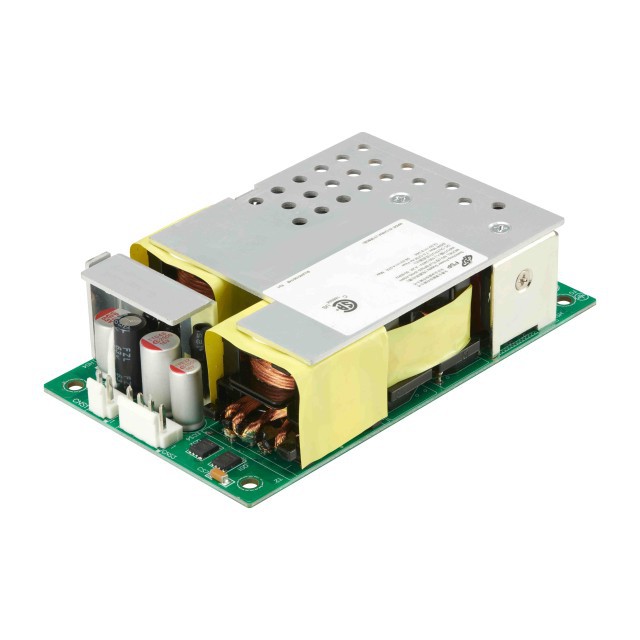

- Class-I safety construction
- IEC 62368-1 safety standard
- EN 55032 Class B conducted emissions
- Dimension 2"x4"x1.126"
- 250W at 14 CFM forced air cooling or 150W at convection cooling

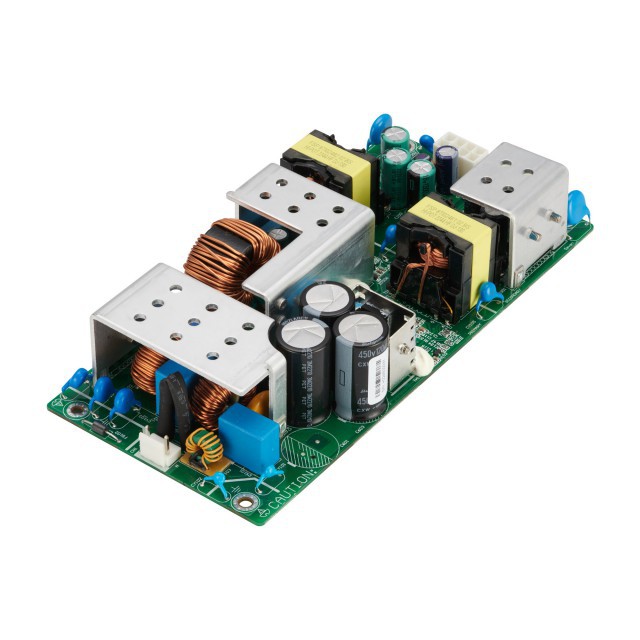

- Class-I design
- IEC 62368-1 safety standard
- Rated 950W dual outputs for PoE application
- Dimension 190 x 90 x 34 mm (above PCB)
- Isolated between 12V & 54V outputs
- Class-I design
- IEC 62368-1 safety standard
- Rated 550W dual outputs for PoE application
- Dimension 190 x 90 x 33.4 mm (above PCB)
- Isolated between 12V & 54V outputs
- Class-I design 350W @ 54V
- Designed to meet IEC 62368-1
- Dimensions 3 x 5 x 1.34 inch
- No load power consumption less than 0.5W
- Class-I design 350W @ 24V
- Designed to meet IEC 62368-1
- Dimensions 3 x 5 x 1.34 inch
- No load power consumption less than 0.5W
- Class-I design 350W @ 18V
- Designed to meet IEC 62368-1
- Dimensions 3 x 5 x 1.34 inch
- No load power consumption less than 0.5W
- Class-I design 350W @ 12V
- Designed to meet IEC 62368-1
- Dimensions 3 x 5 x 1.34 inch
- No load power consumption less than 0.5W
- Class-I design 300W @ 48V with +5Vsb AUX
- Low profile 3 x 6 x 1.38 inch
- Low power consumption at standby mode
- Isolated between PE and RETURN
- Class-I design 300W @ 36V with +5Vsb AUX
- Low profile 3 x 6 x 1.38 inch
- Low power consumption at standby mode
- Isolated between PE and RETURN
- Class-I design 300W @ 30V with +5Vsb AUX
- Low profile 3 x 6 x 1.38 inch
- Low power consumption at standby mode
- Isolated between PE and RETURN
